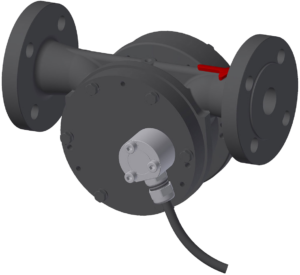

The VAF PT2 Flowmeter is designed for accurate and reliable fuel consumption monitoring, available in multiple configurations and connection sizes.
The PT2 Flowmeter offers high precision measurement, ensuring optimal fuel efficiency and compliance with industry regulations. With its advanced digital signal processing, it delivers fast, obstruction-free flow measurement for marine and industrial applications.
Featuring versatile input/output options, the PT2 seamlessly integrates into onboard systems, making it an ideal solution for fuel consumption tracking, bunkering, and fuel transfer applications.
Features
- High capacity and rangeability
- High accuracy (down to ± 0,2%)
- Design simplicity
- Accuracy not degraded by process conditions
- Compact design
- Few internal parts
Applications
- Fuel consumption measurement of diesel engines and oil burners
- Engine performance (SFOC) when combined with power meter
- Measurement of liquid movement in hydraulic systems
- Accurate measurement of viscous liquids at low flowrates
- Mass flow measurement
- MRV & IMO DCS reporting
Benefits
- One meter for a wide range of flows combined with superior accuracy
- Exact registration of transferred amount of liquid
- Easy to service, due to no complex replacement parts
- Low operating cost
- One single meter model is suitable for different liquids against excellent performance
- Easy to integrate in compact systems
- Less wear – long lifetime – low operating cost
Short specifications
| Basic model number | J5015PT2 | J5023PT2 | J5025PT2 | J5040PT2 | J5050PT2 |
| Connection size [mm] | DN 15 | DN 25 | DN 25 | DN 40 | DN 50 |
| Capacity | |||||
| Maximum, 8 hrs/day discontinuous (l/min) | 50 | 50 | 160 | 250 | 500 |
| Maximum, continuous (l/min) | 37,5 | 37,5 | 120 | 190 | 380 |
| Displaced volume per revolution [liters] | 0,025 | 0,025 | 0,167 | 0,167 | 0,40 |
| Measuring accuracy | |||||
| Range 1:10 better than | ± 0,2% | ± 0,2% | ± 0,2% | ± 0,2% | ± 0,2% |
| Measuring accuracy | |||||
| Repeatability better than | ± 0,05% | ± 0,05% | ± 0,05% | ± 0,05% | ± 0,05% |
| Required starting pressure [kPa (bar)] | 3 (0,03) | 3 (0,03) | 3 (0,03) | 3 (0,03) | 3 (0,03) |
| Materials | |||||
| Body and flanges | ductile iron | ductile iron | ductile iron | ductile iron | ductile iron |
| Rotor | ductile iron | ductile iron | ductile iron | ductile iron | ductile iron |
| Vanes | carbon | carbon | carbon | carbon | carbon |
| O-rings | Viton A | Viton A | Viton A | Viton A | Viton A |
| Bearings | steel ball bearings | steel ball bearings | steel ball bearings | steel ball bearings | steel ball bearings |
| Body pressure rating [kPa (bar)] | 4000 (40) | 4000 (40) | 2000 (20) | 2000 (20) | 2000 (20) |
| Available flanges | |||||
| DIN | PN 10, 16, 25 | PN 10, 16, 25 | PN 10, 16, 25 | PN 10, 16, 25 | PN 10, 16, 25 |
| ANSI | 150, 300 | 150, 300 | 150, 300 | 150, 300 | 150, 300 |
| JIS [K] | 5, 10, 16, 20 | 5, 10, 16, 20 | 5, 10, 16, 20 | 5, 10, 16, 20 | 5, 10, 16, 20 |
| Liquid temperature range | -10 to 150˚C | -10 to 150˚C | -10 to 150˚C | -10 to 150˚C | -10 to 150˚C |
| Type of pulse transmitter | Hall switch with active output | Hall switch with active output | Hall switch with active output | Hall switch with active output | Hall switch with active output |
| Nominal output pulse transmitter | 80 p/l | 80 p/l | 12/24 p/l | 12/24 p/l | 5/10 p/l |
| PT100 output | class B | class B | class B | class B | class B |
| Weight [kg] | 6 | 7 | 13 | 16 | 24 |
Did you know
20% FUEL SAVING ALL IN SOLUTION
Learn how our tools and expertise make meeting ShaPoLi regulations easy and efficient. Schedule your demo now to ensure seamless compliance and sustainable operations!
100% compliance SOLUTION
Learn how our tools and expertise make meeting ShaPoLi regulations easy and efficient. Schedule your demo now to ensure seamless compliance and sustainable operations!
Why choose VAF Flowmeters?
VAF flowmeters are highly accurate and reliable. With approval from 14 independent classification agencies they are surpassing the credentials of any other flow meter. Specific models are suitable for operating pressures up to 320 bar, and a standard selection of high quality materials cover nearly every service condition.
In contrast to most flow meter, including Coriolis and other Positive Displacement Flowmeters, VAF Flowmeters boast superior customized rangeability. They not only maintain accuracy at high flow rates but also exhibit precision at lower rates. VAF Flowmeters are calibrated at <10%, 40% and 100%, as well as any other required flow rate.
In addition to positive displacement flow meters, VAF also provides a range of other flow meters, including turbine, magnetic inductive, mass, and ultrasound flow meters.
Our experts are
standing by■
Our products are designed to enhance fuel efficiency, ensure environmental compliance and optimize maritime operations. Discover more.
Gerard Oskam | Area Manager
What is the VAF PT2 Flowmeter used for?
The VAF PT2 Flowmeter is designed for accurate fuel consumption monitoring in maritime and industrial applications. It helps optimize fuel efficiency, track usage in real time, and ensure compliance with IMO and EU regulations.
How accurate is the VAF PT2 Flowmeter?
The PT2 Flowmeter offers high-precision measurement, with minimal deviation to ensure reliable and consistent fuel monitoring. It provides accurate flow data, regardless of fuel type, viscosity, or density changes.
Can the PT2 Flowmeter handle different fuel types?
es, the PT2 Flowmeter is compatible with various fuel types, including Heavy Fuel Oil (HFO), Marine Gas Oil (MGO), and Liquefied Natural Gas (LNG), making it a versatile choice for different vessel operations.
How does the PT2 Flowmeter integrate with onboard systems?
The PT2 Flowmeter features multiple input and output options, allowing seamless integration with existing ship management, fuel monitoring, and performance optimization systems.
Is the PT2 Flowmeter suitable for hazardous areas?
Yes, the PT2 Flowmeter is available in special versions designed for hazardous environments, ensuring safe and reliable operation in demanding maritime and industrial conditions.
